Ochmit Tools 10-Piece CCMT09T304 IC533 IP610 IP630 CNC Internal turning tool carbide turning tool milling tool CCMT060204 lathe tool CCMT

Turning Inserts

Tags :

Ochmit CCMT060204 CCMT09T304 Carbide Inserts IP620 VP15TF Grade for Stainless Steel SCLCR Boring Bar CNC Lathe Turning Tools

DESCRIPTION

Ochmit CCMT060204 CCMT09T304 Carbide Inserts IP620 VP15TF Grade for Stainless Steel SCLCR Boring Bar CNC Lathe Turning Tools

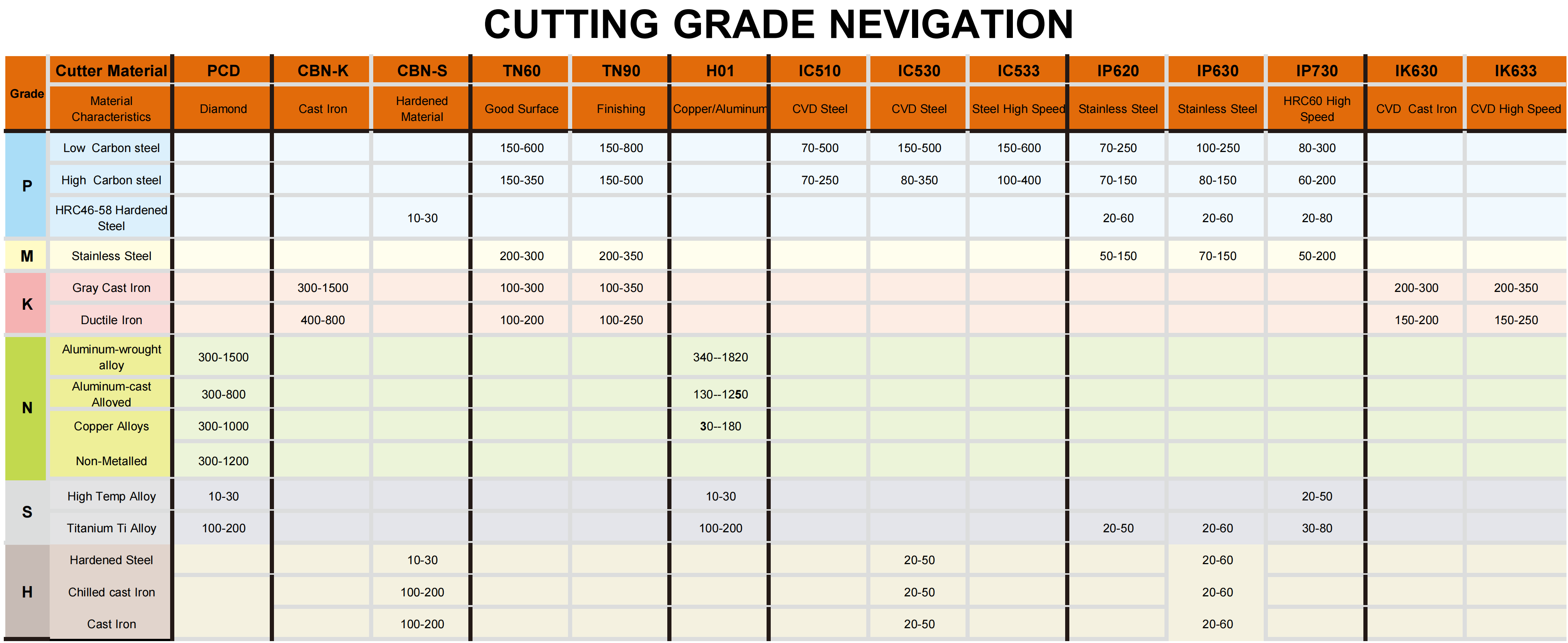

Ochmit Cutting Grade Selection Guide

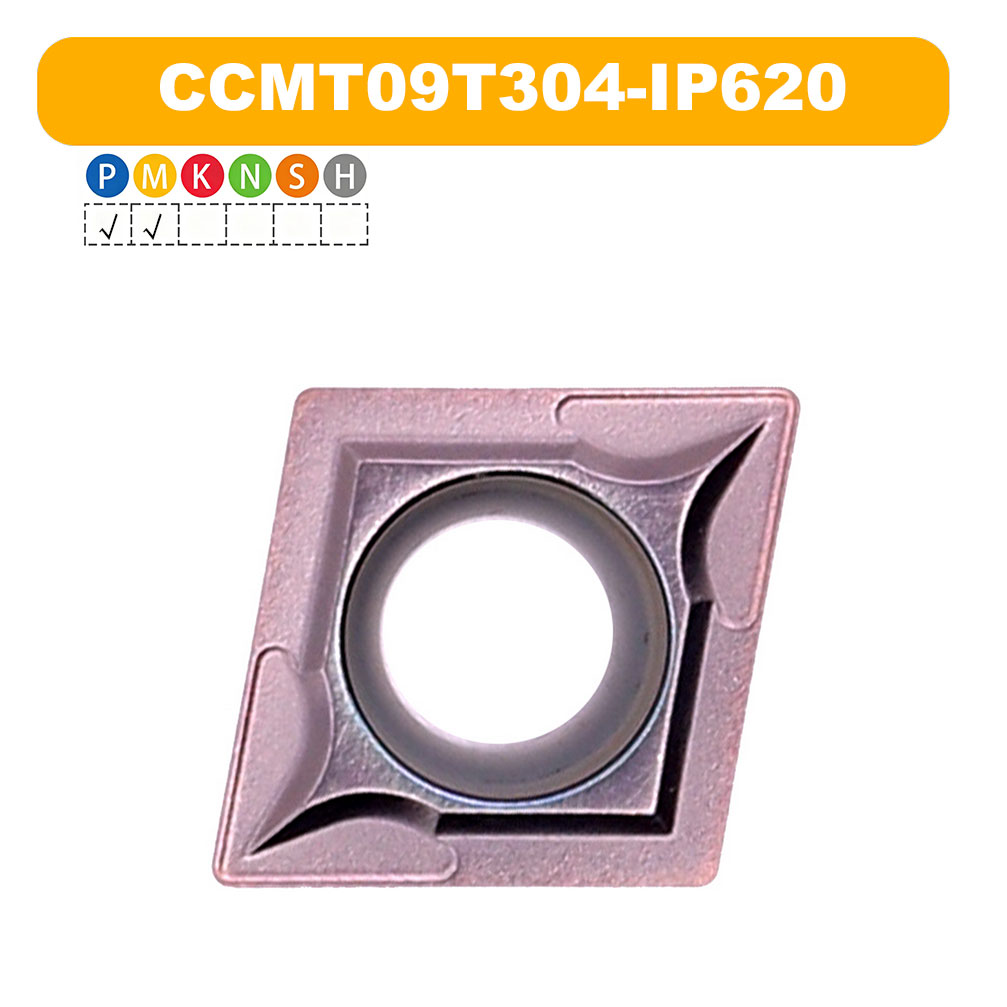

·IP620 (Universal Grade - The "All-Rounder"):
oTechnology: PVD Coated.
oApplication: Steel, Stainless Steel, and Cast Iron (P, M, K).
oCross-Reference: Equal to Mitsubishi VP15TF.
oBest For: Small shops and hobbyists who need one insert for multiple materials.

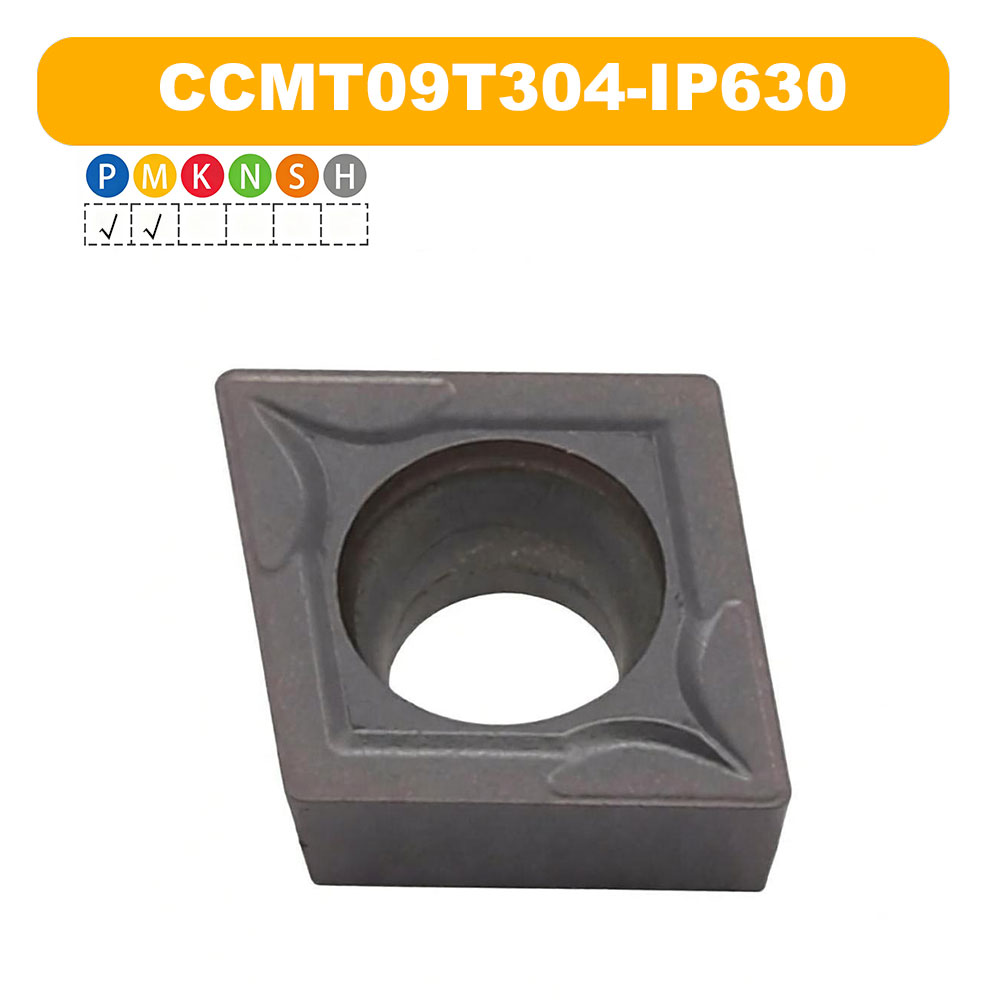

·IP630 (High-Temp Specialist):
oTechnology: PVD Coated.
oApplication: Heat-resistant steel machining (P, M).
oBest For: Tough alloys where heat management is critical.

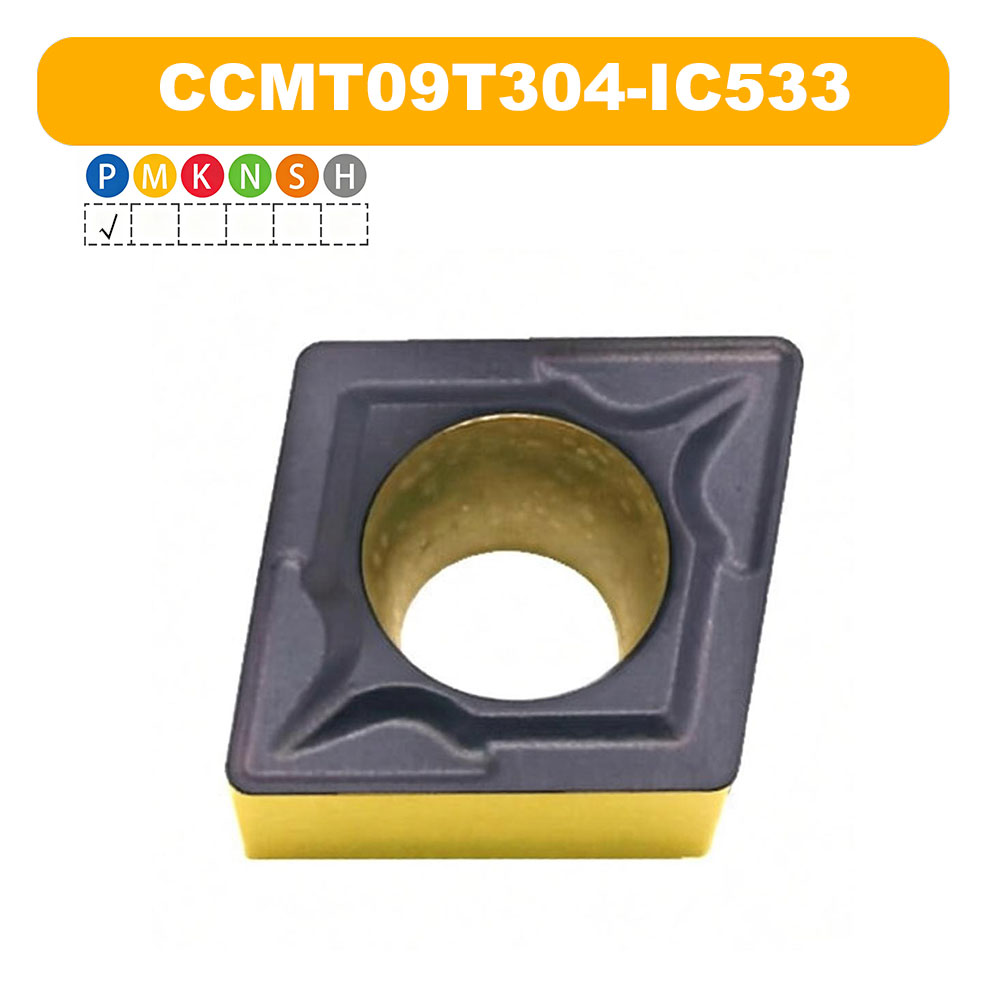

·IC533 (High-Speed Production):
oTechnology: CVD Coated.
oApplication: Continuous high-speed turning of Steel (P).
oCross-Reference: Equal to ZCC.CT YBC251.
oBest For: CNC production where material removal rate (MRR) is the priority.
·IC720 (The "S-Grade" Specialist):
oTechnology:DLC (Diamond-Like Carbon) + PVD.
oApplication: Heat-Resistant Super Alloys (HRSA), Titanium, and Inconel.
oBest For: Aerospace or medical-grade machining.

Ochmit Official Cutting Parameters Table

Grade	Recommended Material	Coating Type	Cutting Speed ((v_ c ) m/min)	Feed Rate ((f) mm/rev)	Depth of Cut ((a_{p}) mm)
IP620	Universal(Steel & Stainless)	PVD	90 – 160	0.05 – 0.25	0.5 – 2.5
IP630	Heat-Resistant Steel	PVD	70 – 130	0.05 – 0.20	0.4 – 2.0
IC533	High-Speed Steel (Production)	CVD	130 – 380	0.10 – 0.50	1.0 – 4.5
IC720	Super Alloys (Titanium/Inconel)	DLC + PVD	30 – 80	0.05 – 0.15	0.2 – 1.5

Chipbreaker Selection for CCMT Inserts
To help your customers choose the right 3D geometry (chipbreaker) for their application:
·HQ / HF / FM (Finishing):
oFocus: High precision and mirro like surface finish.
oBest DOC: 0.2mm – 1.0mm.
·HM / MG / MP (Medium Cutting):
oFocus: General purpose chip control and versatility.
oBest DOC: 1.0mm – 3.0mm.
·HR / UG (Roughing):
oFocus: High material removal rates and edge strength.
oBest DOC: 3.0mm+.

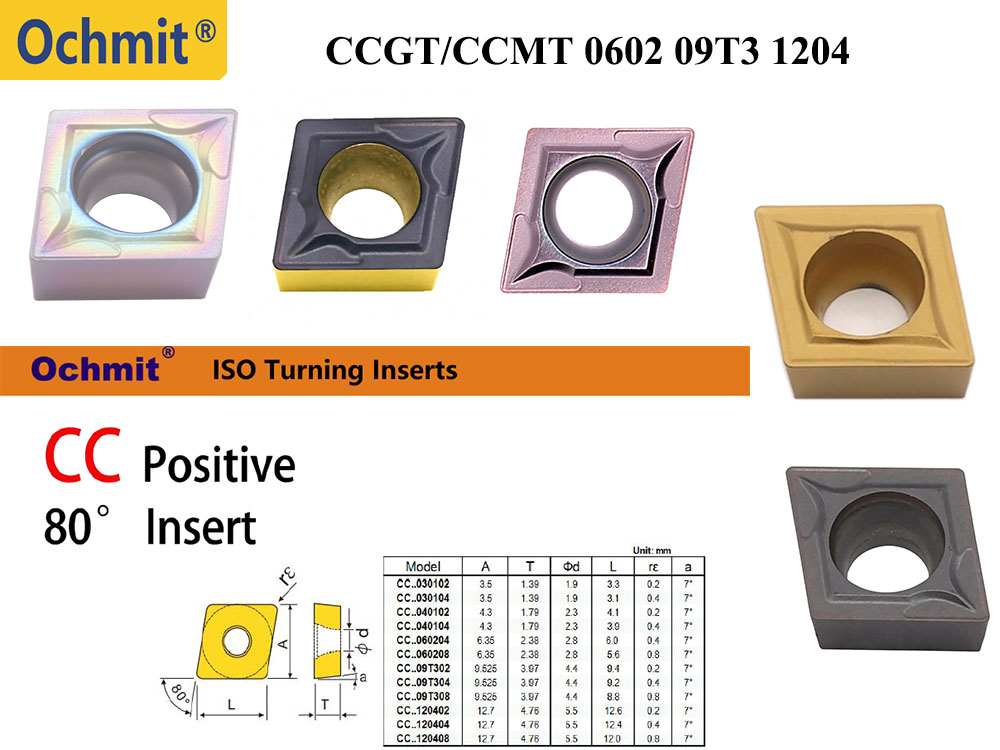

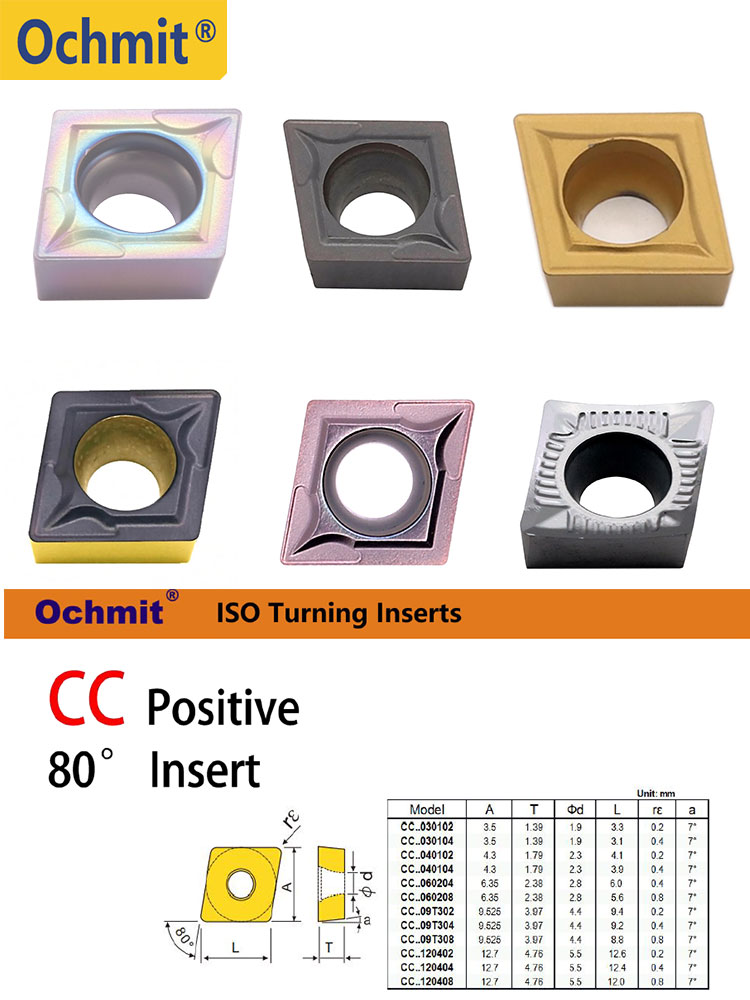

Ochmit CCMT Series: Size & Dimensions Chart

Insert Model	I.C. (mm)	Thickness (S)	Nose Radius (R)	Boring Bar / Holder
CCMT 060204	6.35 mm	2.38 mm	0.4 mm	S08K-SCLCR06 / S10K-SCLCR06
CCMT 060208	6.35 mm	2.38 mm	0.8 mm	S08K-SCLCR06 / S10K-SCLCR06
CCMT 09T304	9.525 mm	3.97 mm	0.4 mm	S12M-SCLCR09 / S16Q-SCLCR09
CCMT 09T308	9.525 mm	3.97 mm	0.8 mm	S12M-SCLCR09 / S16Q-SCLCR09
CCMT 120404	12.7 mm	4.76 mm	0.4 mm	S20R-SCLCR12 / S25S-SCLCR12
CCMT 120408	12.7 mm	4.76 mm	0.8 mm	S20R-SCLCR12 / S25S-SCLCR12

How to Choose the Right Nose Radius (R):
·0.4 (Finishing): Best for fine surface finishes, light cuts, and reducing vibration on thin parts or small lathes.
·0.8 (Semi-Roughing): Best for general-purpose turning, higher feed rates, and interrupted cuts. It has a stronger tip that resists breaking.

Ochmit Pro-Ordering Tips:
1. Check your Holder: If your boring bar says "SCLCR06," you must buy the CCMT 06 size. If it says "SCLCR09," buy the CCMT 09 size.
2. Order in 10s: Ochmit inserts are professionally packed in 10-piece boxes. Ordering 10 pieces ensures they arrive in our signature foam-padded capsule for maximum protection.
3. Mix & Match: If you are unsure, we recommend starting with the IP620 (Universal) grade in 04 radius for finishing and 08 radius for roughing.
Pro-Tips for Your machining :
1. Work Hardening: When machining Stainless Steel with IP620/IP630, do not stop the feed mid-cut. Maintain a steady feed rate of at least 0.1mm/rev to stay "underneath" the hardened layer created by the previous pass.
2. Heat Management: For the IC533 (CVD) grade, high-speed dry cutting is often preferred to maintain heat at the chip. For IP620 (PVD) on stainless, always use wet cutting (coolant) to extend tool life .
3. Vibration Control: If using an Indexable Boring Bar with a long overhang, reduce the cutting speed and feed by 30% to prevent chatter and "singing."
